Specification, evidence, installation and regulatory coordination
How to Specify Acoustic Windows and Doors
A technical guide to complete-system test evidence, ratings, ventilation, installation quality and realistic performance criteria.
An acoustic window or door should not be specified from a glass description, door-leaf weight or headline decibel figure alone. The source, receiving room, complete opening system, ventilation, adjacent construction and installation method all influence the result.
This page is intentionally different from the general soundproof windows guide and soundproof doors guide. Those pages explain the main treatment options. This guide concentrates on evidence, specification and quality control.
What must an acoustic window or door specification establish?
It should identify the noise source and receiving space, define the required acoustic function, describe the complete proposed window or doorset, reference relevant test evidence, coordinate ventilation and safety requirements, specify perimeter and installation details, and state how the completed work will be inspected or measured. A product rating should not be presented as a guaranteed reduction inside a room.
At a glance
- Specify the complete system: glass or leaf, frame, opening sections, seals, threshold, vents, hardware and installation all matter.
- Match the evidence: the tested specimen should be materially comparable with the proposed design.
- Use the right rating: laboratory, small-element and field quantities answer different questions.
- Do not ignore ventilation: airtightness, airflow, overheating and fan noise must be coordinated.
- Plan the perimeter: support, backing, flexible seals, reveals and adjacent construction affect installed performance.
- Record limitations: walls, roofs, floors, chimneys and other flanking paths may remain after the opening is improved.
Define the Source, Receiver and Performance Objective
Noise source
Record whether the issue is road traffic, aircraft, railway activity, speech, music, plant, alarms or another source. Frequency content and event pattern affect the evidence that is useful.
Receiving room
A bedroom, meeting room, studio, living room and circulation area may justify different objectives. Note room use, occupancy times, ventilation and overheating risk.
Required function
Separate general comfort, speech privacy, a planning condition, a façade target, a room-to-room target and protection from intermittent events. They are not interchangeable briefs.
Constraints
Identify heritage significance, access, means of escape, fire function, weather exposure, available reveal depth, room-space loss and permitted ventilation routes.
Diagnose the Transmission Paths Before Specifying
Sound can pass through the closed element, through gaps and vents, around the frame perimeter or through adjoining construction. A visible gap may be important, but a closed and apparently solid opening can still transmit sound through vibration of the glass, leaf, panels or frame.
- Describe the event: note timing, duration, source direction and whether the sound is tonal, intermittent, impulsive or accompanied by vibration.
- Compare likely paths: listen near the pane or leaf, opening joints, threshold, vents, frame perimeter, reveals and adjoining lightweight construction while the source is present.
- Record the existing opening: note frame material, opening type, glass or panel markings, vents, seals, hardware, dimensions and visible defects.
- Check the wider envelope: compare walls, roofs, floors, ceiling junctions, chimneys and adjacent façades before assuming the opening is the only significant path.
- Define constraints: confirm ventilation, fire, access, heritage, planning and room-layout requirements.
- Decide whether measurement is needed: use formal assessment where the path remains uncertain, the project is costly or a numerical target applies.
Complete-System Evidence Versus Component Claims
Glass, boards, seals and door leaves do not establish a complete opening result
A glass make-up can have useful laboratory data, but the installed window also includes a frame, opening joints, hardware, vents and perimeter installation. A door-leaf claim does not establish the performance of its frame, threshold, seals, glazing or wall junction. Request evidence for the complete tested specimen wherever possible.
| Evidence | What it can support | What it does not prove |
|---|---|---|
| Glass or panel data | Comparison of the tested material or glazed unit under the stated conditions. | Performance of a complete opening window, doorset or finished room. |
| Complete window or doorset laboratory report | Comparison of the tested frame, openings, seals, glazing, hardware and specimen configuration. | An identical result on site where dimensions, construction, vents or installation differ. |
| Small-element or ventilator data | Acoustic comparison of a tested ventilator or other small technical element. | Adequate room ventilation or the performance of the complete façade. |
| Installed field measurement | Assessment of a real room-to-room or façade condition, including site workmanship and flanking. | Performance at another building with a different source, room and construction. |
How to Read an Acoustic Test Report
A useful specification records the test report itself rather than copying one headline figure from marketing material.
- Testing laboratory and report number
- Test standard and edition
- Specimen dimensions
- Frame material, profile and depth
- Fixed or opening configuration
- Glass, panels or door-leaf construction
- Seals, thresholds and hardware
- Ventilators or other openings
- Mounting and test-wall details
- Frequency-band results
- Single-number ratings and adaptation terms
- Permitted variations or limitations
Understanding Acoustic Ratings
Do not convert an Rw rating into a promised room reduction
The internal change depends on the external or source-room sound, the existing construction, room absorption, opening area, installation quality, ventilation and other paths. A laboratory rating is evidence for a tested element, not a guaranteed change at the bed, desk or listening position.
Compare the Tested Specimen with the Proposed Design
| Feature | Check in the report | Check in the proposal | Why the difference matters |
|---|---|---|---|
| Size and subdivisions | Overall specimen and individual opening dimensions | Actual width, height, mullions, transoms and leaf sizes | Larger panes, leaves and different subdivisions may behave differently. |
| Opening type | Fixed, hinged, sliding, sash, tilt-and-turn or another configuration | Number and type of opening sections | Opening joints and compression arrangements influence airtightness. |
| Glass or leaf | Exact make-up, thickness, cavity or internal construction | Specified make-up and any safety, thermal or fire changes | A visually similar component may not reproduce the tested response. |
| Seals and threshold | Number, type and location of seals and lower-edge detail | Actual gasket, drop seal, threshold and floor interface | A different air path can control the complete result. |
| Ventilation | Whether vents were included, closed, omitted or tested separately | Required airflow route and acoustic ventilator details | A tested unvented specimen does not represent a façade with an open background ventilator. |
| Installation | Mounting opening, perimeter treatment and laboratory conditions | Support, backing, flexible seals, reveals and making good | The site junction may introduce leakage or flanking absent from the laboratory. |

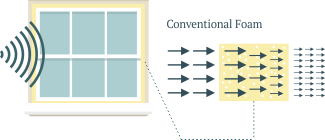

Window Specification

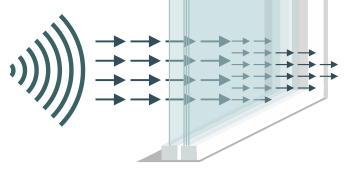

Glazing
Record the exact glass and cavity construction supported by the relevant report. Pane count alone does not define acoustic performance, and the glazed-unit result is not the complete-window result.
Frame and opening sections
Record profile, material, depth, mullions, transoms, fixed areas, opening type, hardware and gasket arrangement. The proposed configuration should be compared with the tested specimen.
Ventilators
State whether background ventilation is provided through the window, wall or a mechanical system. Specify airflow and acoustic evidence together rather than blocking a required route.
Perimeter and reveals
Define the support, backing, flexible internal and external seals, drainage, weathering and interfaces with plaster, linings, shutters and boxes.
For broader comparisons of repair, re-glazing, secondary glazing and replacement, use the soundproof windows and acoustic glazing guide.
Door Specification
Leaf construction
Specify the complete leaf build-up, thickness, glazing, panels and any required fire or security function. Labels such as solid or acoustic are not test evidence.
Frame and perimeter seals
Record the frame, gasket locations, hinge and latch arrangements and the closing pressure needed to maintain continuous contact over time.
Threshold
Specify the lower-edge detail, including any automatic drop seal, compression threshold, floor transition, weather exposure and access implications.
Lobbies and paired doors
Where two door lines are proposed, define the lobby walls, ceiling, floor, ventilation, door sequencing, access and escape requirements as one arrangement.
For domestic internal, entrance, sliding, French and patio-door considerations, use the soundproof doors guide.
Comparing Intervention Types
| Intervention | Specification emphasis | Principal limitation to record |
|---|---|---|
| Adjustment and local repair | Confirmed defect, compatible seals, hardware alignment and continuity of the perimeter repair. | Does not change an inherently weak glass, leaf, frame, vent or adjoining construction. |
| Re-glazing | Frame capacity, exact unit, beads, setting, safety, thermal effects and retained seals. | The existing frame, openings and vents may continue to control the result. |
| Secondary glazing | Independent frame, cavity, opening layout, primary-window access, reveals, ventilation and condensation management. | Uses internal space and does not remove other façade or structural paths. |
| Replacement window or doorset | Complete-system report, configuration, vents, perimeter, operation, planning and making good. | The building result remains subject to installation and adjoining construction. |
| Door lobby | Two independently capable door lines, enclosed construction, usage, ventilation, access and fire strategy. | Requires space and can be undermined by open doors or weak surrounding elements. |
Ventilation, Overheating and Moisture
An acoustic upgrade often increases airtightness. The design must still provide suitable ventilation and manage moisture and summer heat.
Ventilation strategy
State how background and purge ventilation are provided, whether an acoustic ventilator or mechanical system is proposed, and how airflow, pressure loss, fan noise and maintenance are addressed.
In England, the applicable Approved Document F edition depends on the regulatory standards and transitional arrangements for the project. The 2026 edition applies to work subject to the 2026 standards from 24 March 2027, while earlier editions continue to apply in qualifying cases.
Overheating and condensation
A room that is quieter only with every opening sealed may be difficult to use during warm weather. Secondary glazing and altered airflow may also change surface temperatures and moisture behaviour.
Coordinate acoustics with ventilation, thermal performance, drainage, safe opening and user operation rather than treating these as later additions.
Installation and Quality Assurance
Installation requirements should be written before work starts. Generic wording such as “fit and seal” does not define an acoustic perimeter.
- Survey the opening: record dimensions, tolerances, substrate, defects, services, finishes, shutters, access and structural support.
- Define support and movement: coordinate fixings, compatible packers or shims, frame movement and drainage without creating uncontrolled rigid bridges or voids.
- Specify the perimeter: state backing materials, flexible seals, internal and external continuity, weathering and interfaces with reveals and finishes.
- Protect the tested configuration: confirm the specified glass, leaf, seals, vents, hardware and opening arrangements before manufacture and installation.
- Inspect concealed work: photograph the perimeter and support details before trims and finishes hide them.
- Commission operation: check alignment, seal contact, thresholds, latches, vents, safe opening, access and any automatic controls.
- Retain records: keep drawings, schedules, reports, photographs, product references and approved variations.
Installed Performance and Flanking
Laboratory testing suppresses or controls flanking so that the specimen can be assessed. A building includes other transmission paths, room geometry and workmanship.
Frame perimeter
Voids, discontinuous backing, cracks and unsuitable making good can create leakage around an otherwise capable system.
Adjoining walls and roofs
Lightweight walls, bay roofs, dormer cheeks, roof slopes and ceiling junctions may remain important after the opening is improved.
Internal flanking
Floors, party walls, ceiling voids, ducts, chimneys and corridors may bypass internal doors or glazed screens.
Room and source conditions
Internal level change depends on source spectrum, façade area, room absorption and background sound as well as the opening system.
Heritage, Fire, Access and Planning
Heritage and planning
Alterations to a listed building that affect its special architectural or historic interest require listed building consent. Planning permission may also be needed, and conservation-area controls or an Article 4 direction can restrict changes that might otherwise be permitted.
Historic windows and doors should be assessed for significance and repair potential before replacement is assumed. Secondary glazing may reduce external change, but consent requirements still depend on the proposed fixing and its effect on historic fabric.
Fire, access and escape
Do not alter a fire doorset, escape window, accessible threshold or controlled door in a way that compromises its required function. Acoustic seals and heavier components must be compatible with hardware, closing forces, means of escape, access and the wider fire strategy.
Approved Documents B and M provide relevant England guidance for fire safety and access where those requirements apply. Project-specific advice may be needed.
Common Specification Mistakes
Choosing by pane count
Double and triple glazing describe construction categories, not complete acoustic performance.
Quoting glass as a window rating
A glazed-unit value should not be presented as the rating of the opening window or the reduction inside a room.
Using a leaf-only door claim
The frame, seals, threshold, hardware, glazing and wall junction may control the doorset.
Ignoring vents
A required air path needs coordinated airflow and acoustic data, not improvised permanent blockage.
Assuming every configuration is covered
A report for a fixed specimen may not support a large opening sash, sliding door or differently subdivided design.
Leaving the perimeter undefined
Unspecified backing, support, sealing and making good create avoidable site variation.
Questions for Suppliers and Installers
- Is the quoted rating for glass, a leaf, a ventilator or the complete window or doorset?
- Can I see the full laboratory report rather than a marketing summary?
- Does the tested specimen match the proposed dimensions and opening configuration?
- Were vents included in the test?
- Which seals, threshold and hardware were used?
- What permitted variations are stated in the report?
- How will ventilation be provided?
- How will the frame perimeter be supported, backed and sealed?
- Which adjoining paths may remain limiting?
- How will concealed installation work be recorded?
- What inspection and commissioning will be completed?
- What measurement is proposed where a numerical outcome is required?
Suggested Specification Record
| Field | Information to record |
|---|---|
| Opening reference | Room, elevation, drawing reference and dimensions |
| Noise and objective | Source, room use, relevant spectrum or assessment basis and intended function |
| Complete system | Frame, openings, glass or leaf, seals, threshold, hardware and vents |
| Evidence | Laboratory, report number, standard, ratings, specimen and accepted variations |
| Perimeter | Substrate, support, fixings, backing, seals, weathering, reveals and finishes |
| Regulatory constraints | Ventilation, fire, access, escape, planning, listed-building and lease requirements |
| Quality control | Inspection points, concealed-work photographs, commissioning and measurement |
When Measurement Is Justified
- The dominant path between the opening and adjoining construction remains uncertain.
- A planning condition, contractual requirement or formal room-to-room or façade target applies.
- Low-frequency, intermittent or tonal noise is important.
- The proposed expenditure is substantial or the building is difficult to alter later.
- Several openings, vents, walls and roofs require coordinated design.
- Before-and-after or commissioning evidence is required.
Frequently Asked Questions
Is a glass Rw rating the same as a complete-window rating?
No. Glass data describes the tested glass or glazed unit. A complete opening window also includes the frame, opening sections, gaskets, hardware, vents and specimen dimensions.
Can a laboratory rating predict the reduction inside my room?
Not by itself. The room result also depends on the existing level, source spectrum, opening area, installation, ventilation, adjoining construction, flanking and room absorption.
Is triple glazing always the best acoustic specification?
No. Pane count alone does not determine acoustic performance. Glass thicknesses, interlayers, cavity, frame, seals, openings and the complete tested configuration matter.
Should a trickle ventilator be removed to improve sound insulation?
Do not remove or block required ventilation without establishing a suitable alternative. Compare airflow and acoustic data for the complete ventilation strategy.
Can a heavier door leaf solve speech leakage?
Only where the leaf is the controlling path. The frame, threshold, perimeter seals, glazing, vents and surrounding partition may remain weaker.
Does secondary glazing always outperform replacement windows?
No universal rule applies. A separate internal frame and deeper cavity can be advantageous, but performance depends on the complete design, available space, primary window, seals, ventilation and surrounding construction.
How should alternative products be approved?
Compare the proposed alternative with the specified system and supporting report. Record differences in dimensions, configuration, materials, seals, vents, hardware and installation before accepting a substitution.
Can a smartphone app verify acoustic window performance?
A phone can help record timing or make informal comparisons, but it is not a substitute for suitable calibrated instrumentation and a defined field-measurement method.
Official and Technical References
- ISO 10140-1:2021: application rules for laboratory measurement of building elements and products.
- ISO 10140-2:2021: laboratory measurement of airborne sound insulation, including windows, doors, façades and small technical elements.
- ISO 717-1:2020: rating of airborne sound insulation in buildings and of building elements.
- ISO 16283-1:2014: field measurement of airborne sound insulation between rooms.
- ISO 16283-3:2016: field measurement of façade sound insulation.
- Approved Document E: resistance to sound within its defined England scope.
- Approved Document F: ventilation guidance and applicable transitional arrangements in England.
- Historic England Advice Note 16: listed-building consent and informed applications.
